Dettagli:
Termini di pagamento e spedizione:
|
| Namee del prodotto: | Puntello telescopico di Acrow | Materiale: | Acciaio Q235 |
|---|---|---|---|
| Peso: | 13KG/PCS | Superficie: | Galvanzied/dipinto/nero |
| Caratteristica: | ad alta resistenza | Servizio: | OEM |
| Evidenziare: | Q235 Telescopic Acrow Prop,Painted Telescopic Acrow Prop,5.5m Shore Props |
||

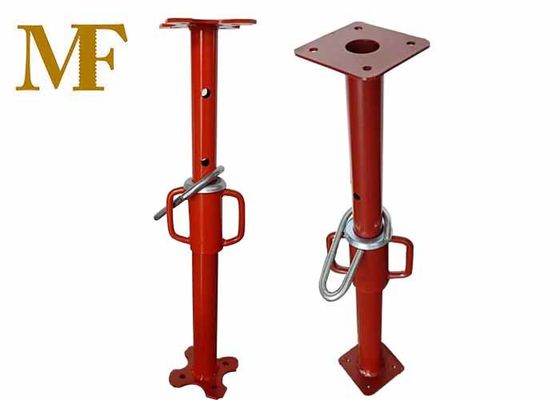

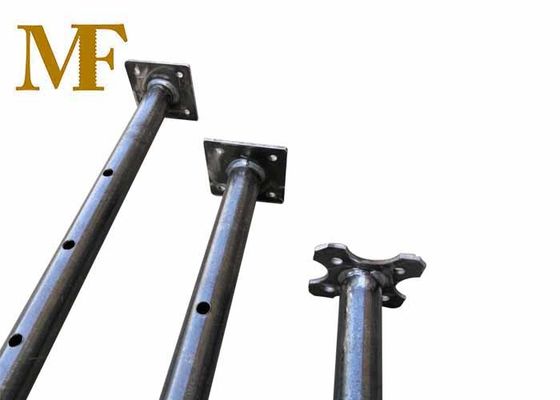

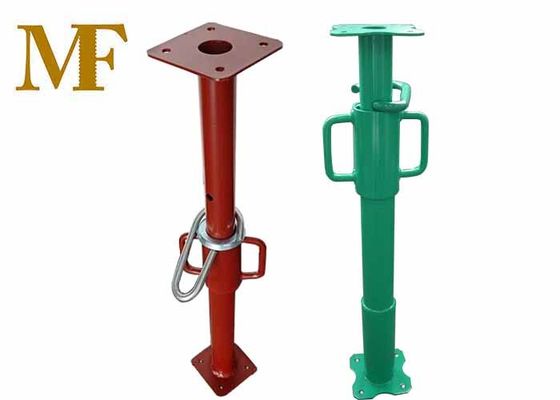

Q235 Steel Telescopic Acrow Prop For Scaffolding Adjustable Length 1.8-5.5m
Steel Adjustable shoring prop is telescopic which can be adjusted to any length within its range.
We can produce different kinds of steel props as the customer’s requirement which can save you
much time and material at the same time.
Specification of Q235 Steel Telescopic Acrow Prop For Scaffolding Adjustable Length 1.8-5.5m:
1. A complete set of steel prop consists of top plate,base plate,inner pipe,outer pipe, sleeve,nut and pin.
2. The steel prop is easy to assemble and disassemble due to its simple structure.
3. Can be adjusted to any length within its range;it can be reused.
4. Widely used in proping system such as construction,plants and bridge etc.
| Min Height | Max Height | Inner Tube | Outer Tube | Tube Thickness |
| 1.6m | 2.9m | 48mm | 60mm | 1.4~4.0mm |
| 1.8m | 3.2m | 48mm | 60mm | 1.4~4.0mm |
| 2.0m | 3.5m | 48mm | 60mm | 1.4~4.0mm |
| 2.2m | 4.0m | 48mm | 60mm | 1.4~4.0mm |
| 3.0m | 5.0m | 48mm | 60mm | 1.4~4.0mm |
| 3.5m | 6.0m | 48mm | 60mm | 1.4~4.0mm |
Features of Adjustable Telescopic Shoring Jack Post Concrete Slab Prop in Scaffolding:
